Harvester Solutions has built or is currently developing more harvesters to meet a wide range of customer needs. Below are examples of harvesters that are on offer, the results coming direct from customer requests for specific harvesting solutions. If you have a harvesting requirement not covered by any of the products currently on the website, please do not hesitate to contact us.
Typical crops that we are experimenting with include, stevia, flower heads (e.g. marigolds), seed heads (especially light or hard-to-harvest seeds), taking cuttings for propagation and even underwater harvesting (Dropwart)!
Harvester Solutions has built or is currently developing more harvesters to meet a wide range of customer needs. Below are examples of harvesters that are on offer, the results coming direct from customer requests for specific harvesting solutions. If you have a harvesting requirement not covered by any of the products currently on the website, please do not hesitate to contact us.
Typical crops that we are experimenting with include, stevia, flower heads (e.g. marigolds), seed heads (especially light or hard-to-harvest seeds), taking cuttings for propagation and even underwater harvesting (Dropwart)!
HT - Table Top
- Base price: NZ$ 9745.00
(all prices excl. GST) - Availability:
ex. factory - Delivery:
NZ delivery typically within three weeks.
- Description
- Features
- Specification
- Maintenance and Servicing
- Documents

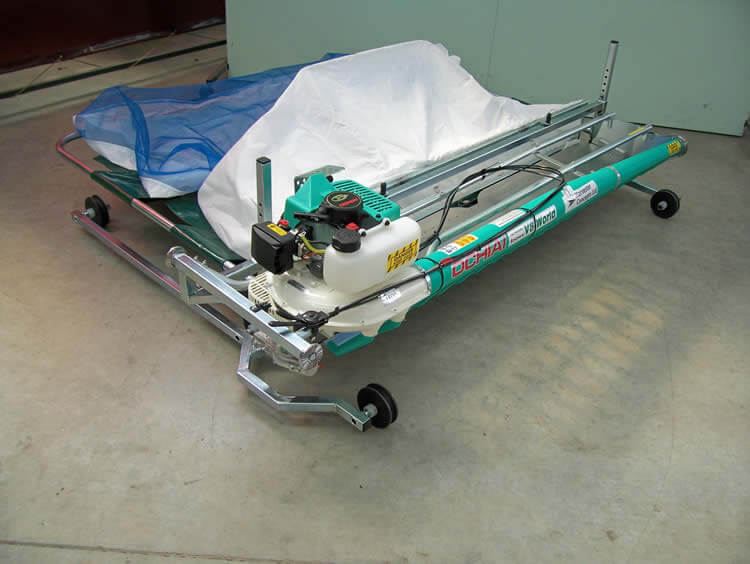

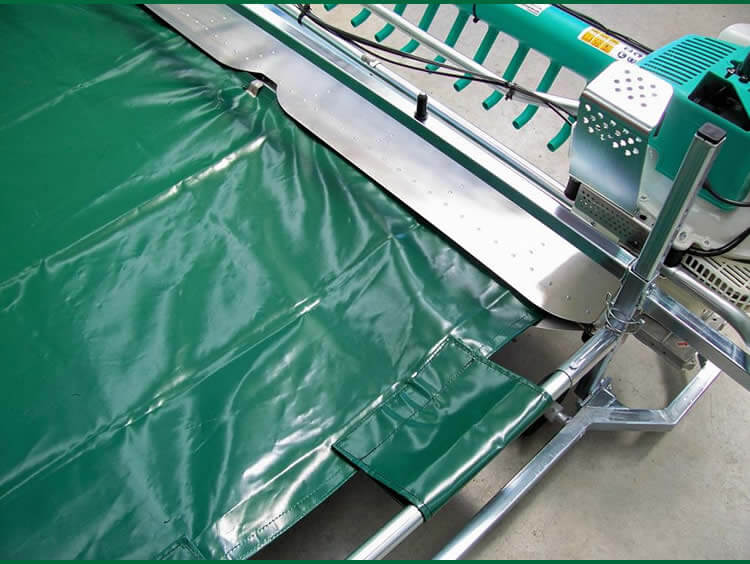

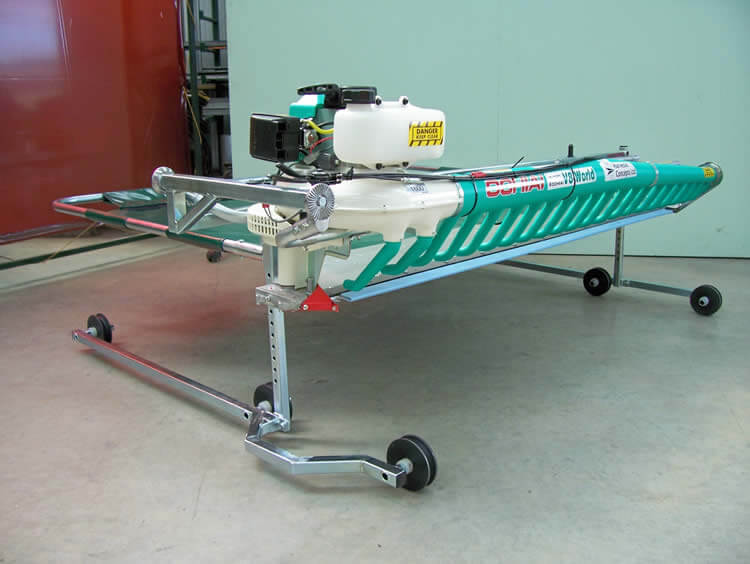

A typical application is hydroponic growing tables in tunnel houses. The HT-Table Top (TTH) runs on rails at the edge of each table. The crop is cut and blown into the collection bag. The HT-Table Top has adjustable cutting height from negative values to more than 400mm (customised to suit customer) so can also be used for topping crops.
Cutting widths of 1210 or 1600mm are available with frames made to suit your table width/rails. An extendable frame option is available.
- Light weight, can easily be carried and placed on table by two people.

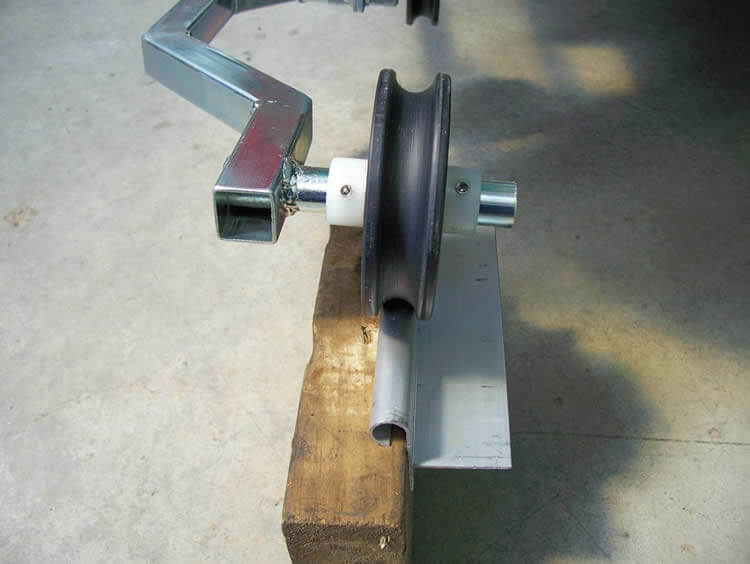

- Wheel track custom made to suit customer’s tables.
- Wheel design custom made to suit customer’s tables.
- Collection bag has quick release feature to speed up bag emptying

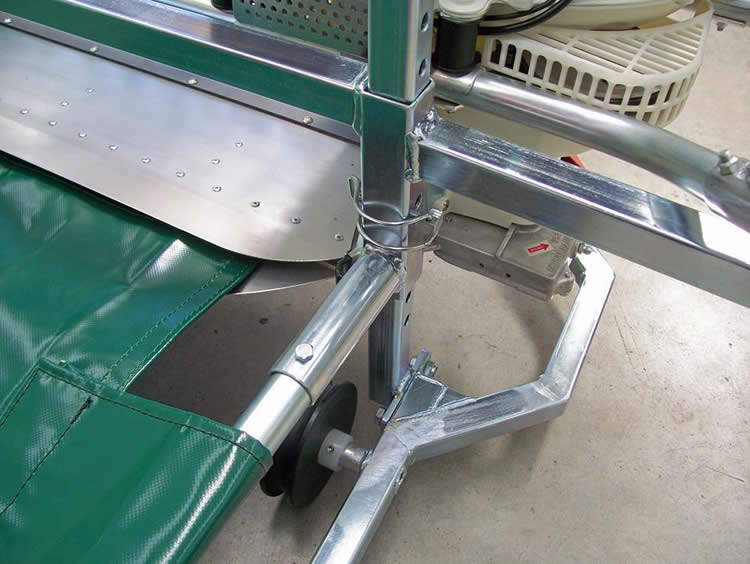

- Cutting height (above table side rails): 20mm up to 330mm in 12mm increments
- Cutting width: 1210mm or 1600mm
- Wheel track: to suit tables
- Weight, dry: 34Kg
| Width (mm) | Length (mm) | Height (mm) | cu.m (approx.) | kg (approx.) | |
|---|---|---|---|---|---|
| Ready to Use | 1850 | 1500 | 550 | – | – |
| For Freighting (in crate) | – | – | – | 1.72 | 108 |
Note: Specifications are subject to change without notice. Harvester Solutions implements a continuous product improvement program.
Parts lists are available in PDF format. Please contact us by using the form below and we’ll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.
When placing a parts order, please quote the parts list drawing title, item number required and quantities.
You can download the following documents:
HT - Aqua
- Base price: NZ$ 3465.00
(all prices excl. GST) - Availability:
ex. factory - Delivery:
NZ delivery typically within three weeks.
- Description
- Documents
Another example of a research project.

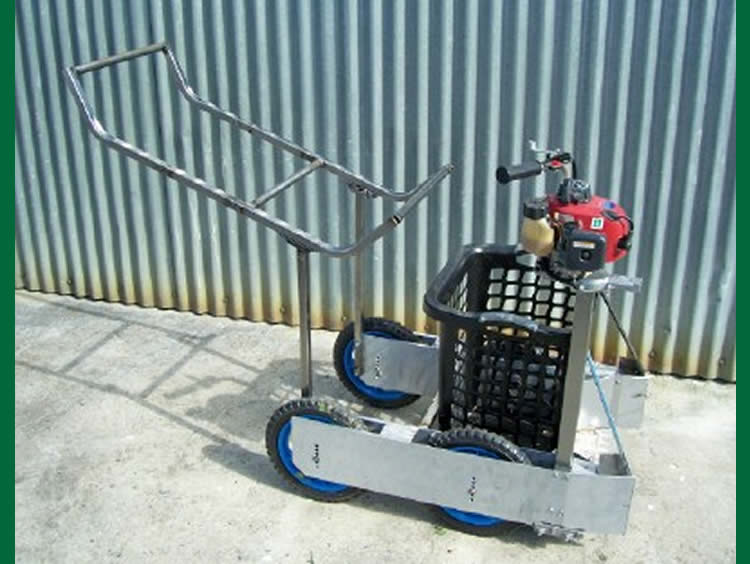

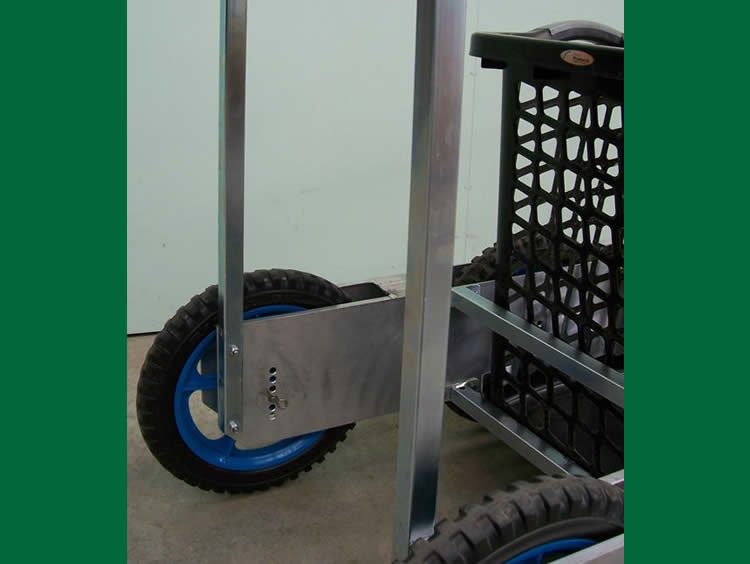

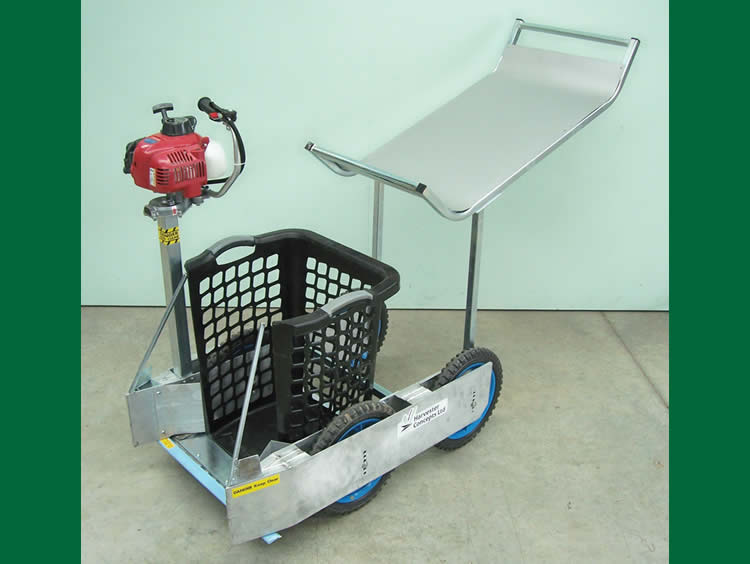

In this case it is an underwater harvester. The crop (Dropwart) is grown in 300mm deep water and the harvester cuts it 100mm off the bottom.
This project is just being trialled by the customer.

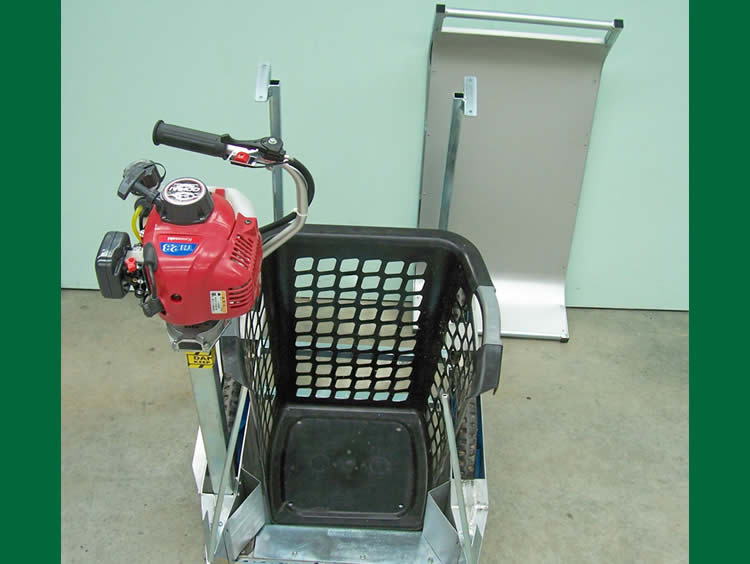

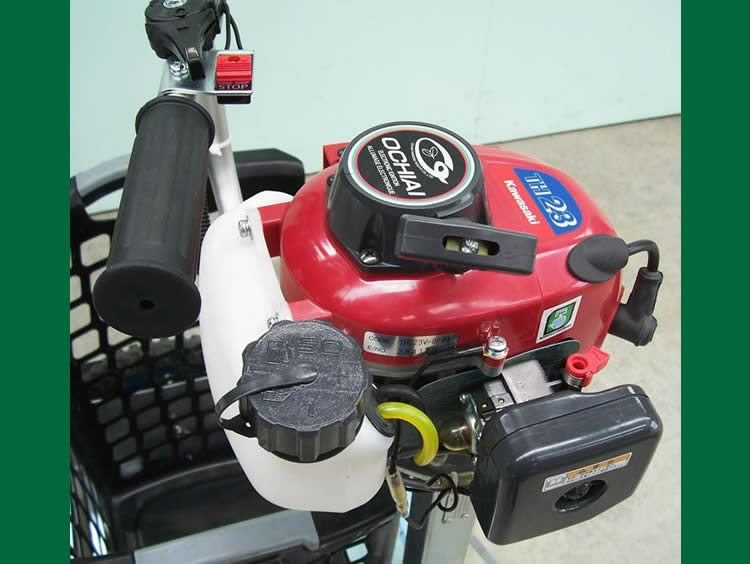

In operation, the HT-Aqua is started and pushed forward about 400mm into the crop. It is then throttled back. The operator inserts his hands into the top of the crop at about the “cut line” and pulls the cuttings rearwards into the basket. The basket is then tilted backwards, removed and emptied onto the tray area where the cuttings are bundled. This is repeated then the operator carries the two bundles of cuttings to a pontoon or transport at the edge of the lagoon.
You can download the following documents:
HT - Leaf/Flower Plucker
- Base price: NZ$ 7772.54
(all prices excl. GST) - Availability:
ex. factory - Delivery:
NZ delivery typically within three weeks.
- Description
- Features
- Specification
- Options
- Videos
- Maintenance and Servicing

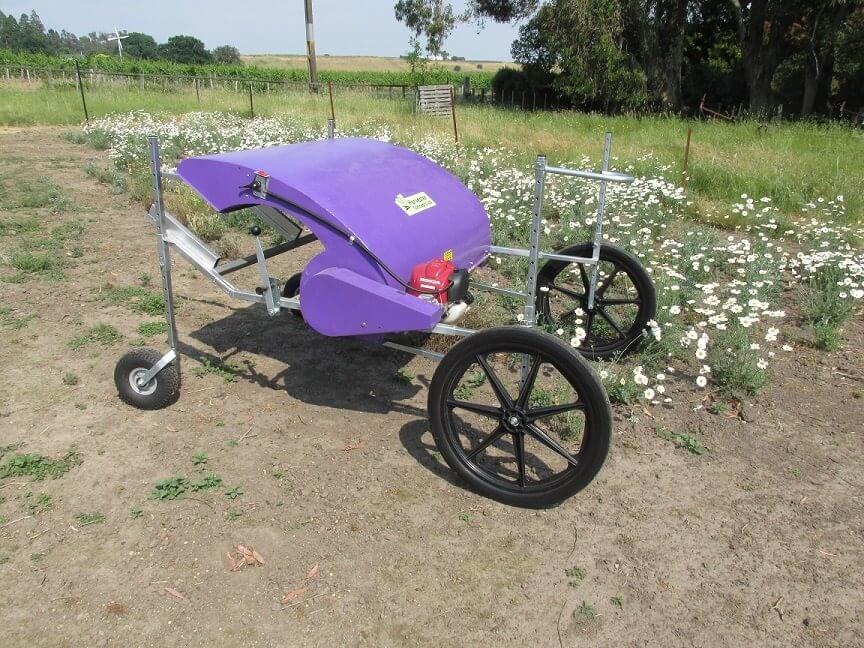

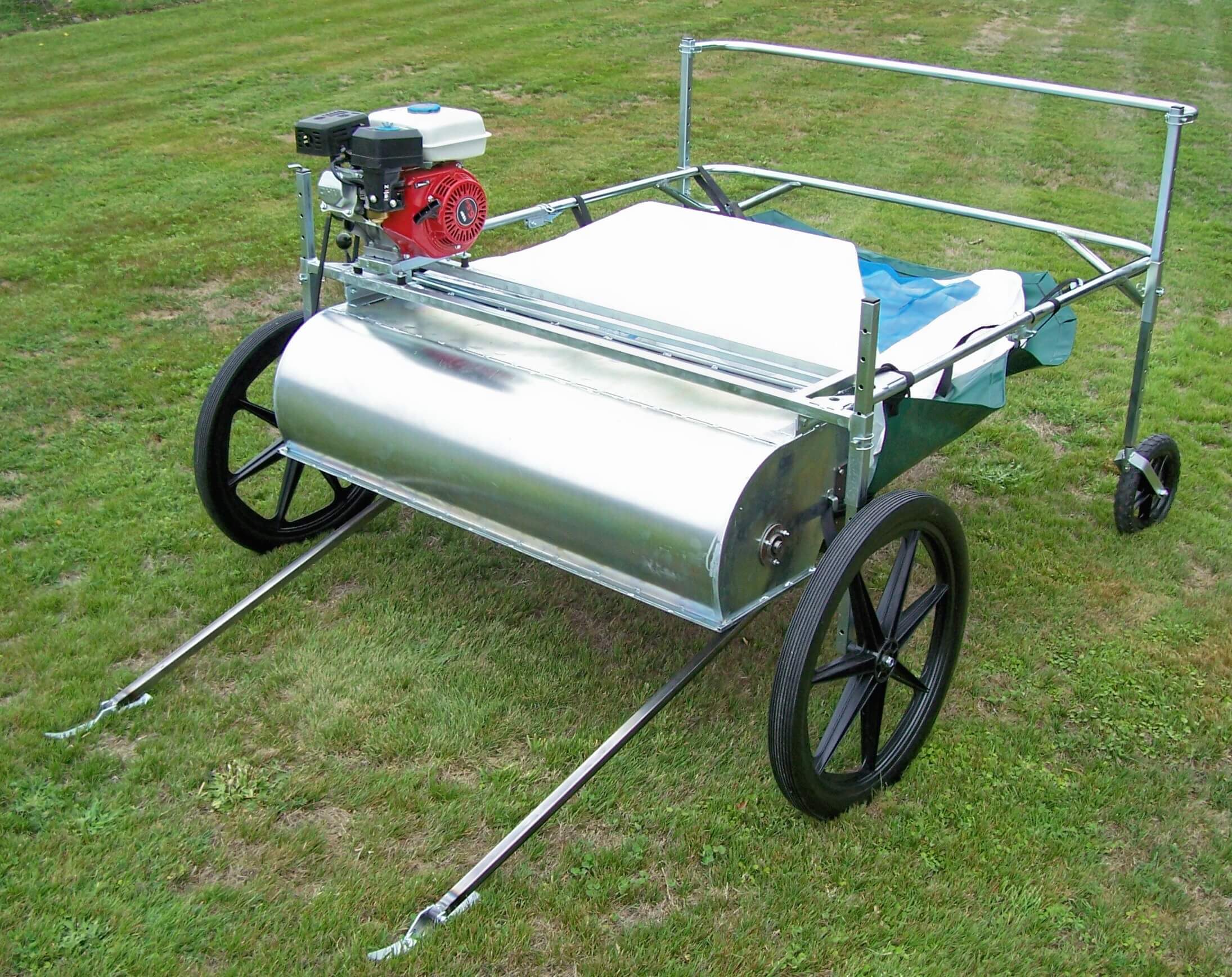

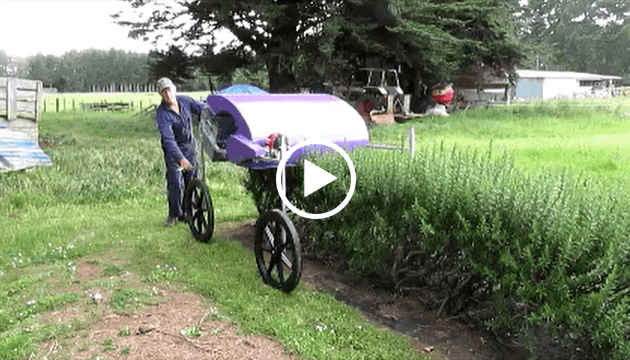

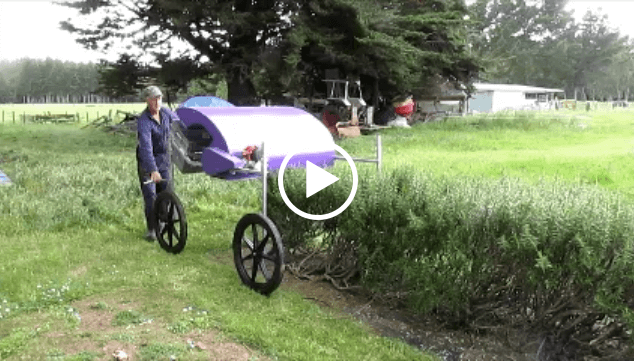

The HT- Leaf Plucker has a rotary plucking head enabling the stripping of flower heads and leaf (leaving the stem behind) The HT- Leaf Plucker is ideal for crops such as stevia and pyrethrum.
- Adjustable height.
- person Operation.
- Adjustable handlebar height; allows for raised beds. The adjustment allows the harvester to be set to best advantage for the operator. Engine throttle is activated from the operator’s position.
- The HT-Leaf Plucker will straddle the crop and the operator can also walk in a wheel track hence no plant damage occurs allowing a second crop to grow.
- Cutting width is 1200mm
- Frame is fully Zinc Plated for low maintenance.
- Wheels have quick release pins allowing compact storage or easy transporting in a vehicle.

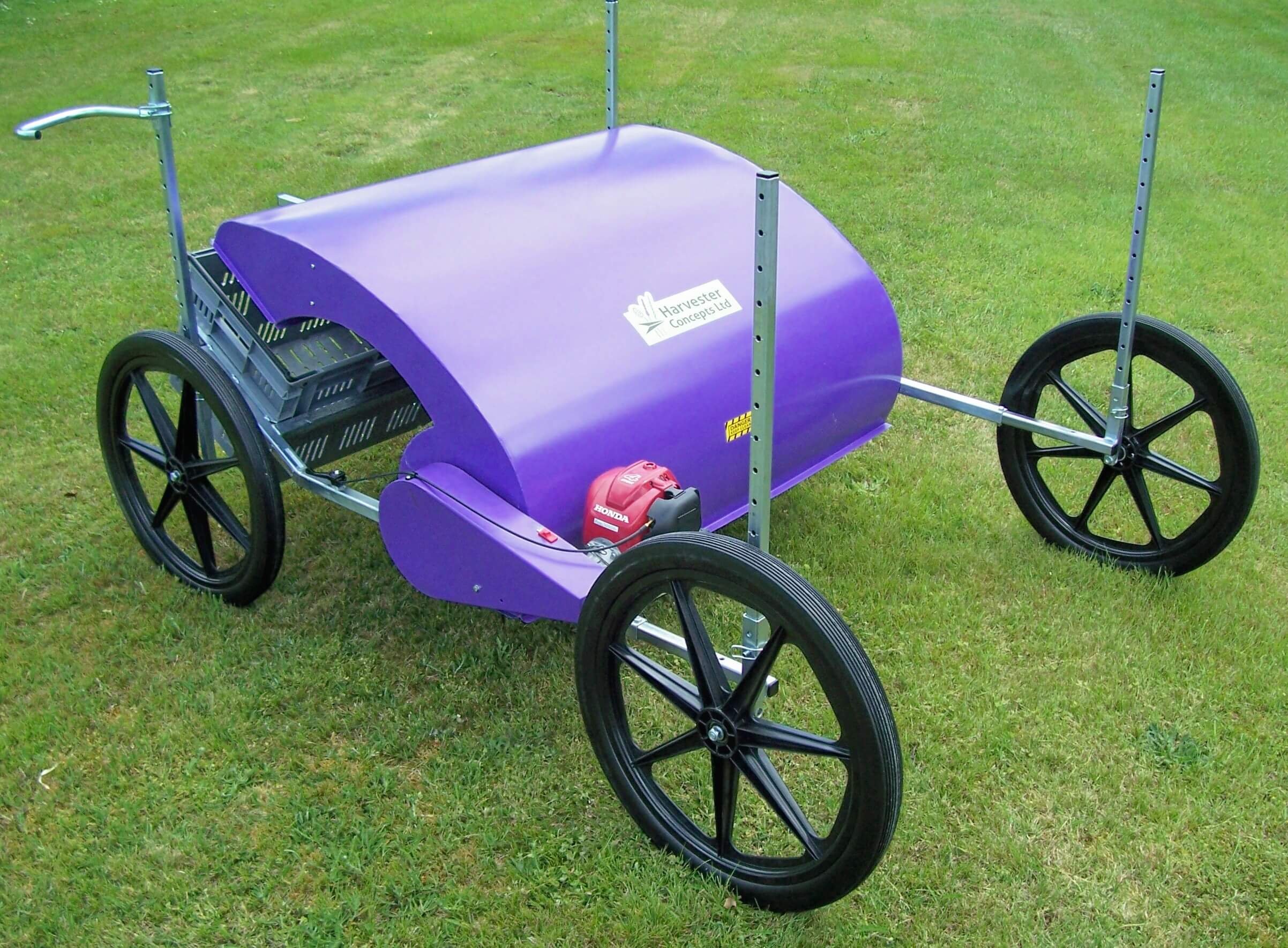

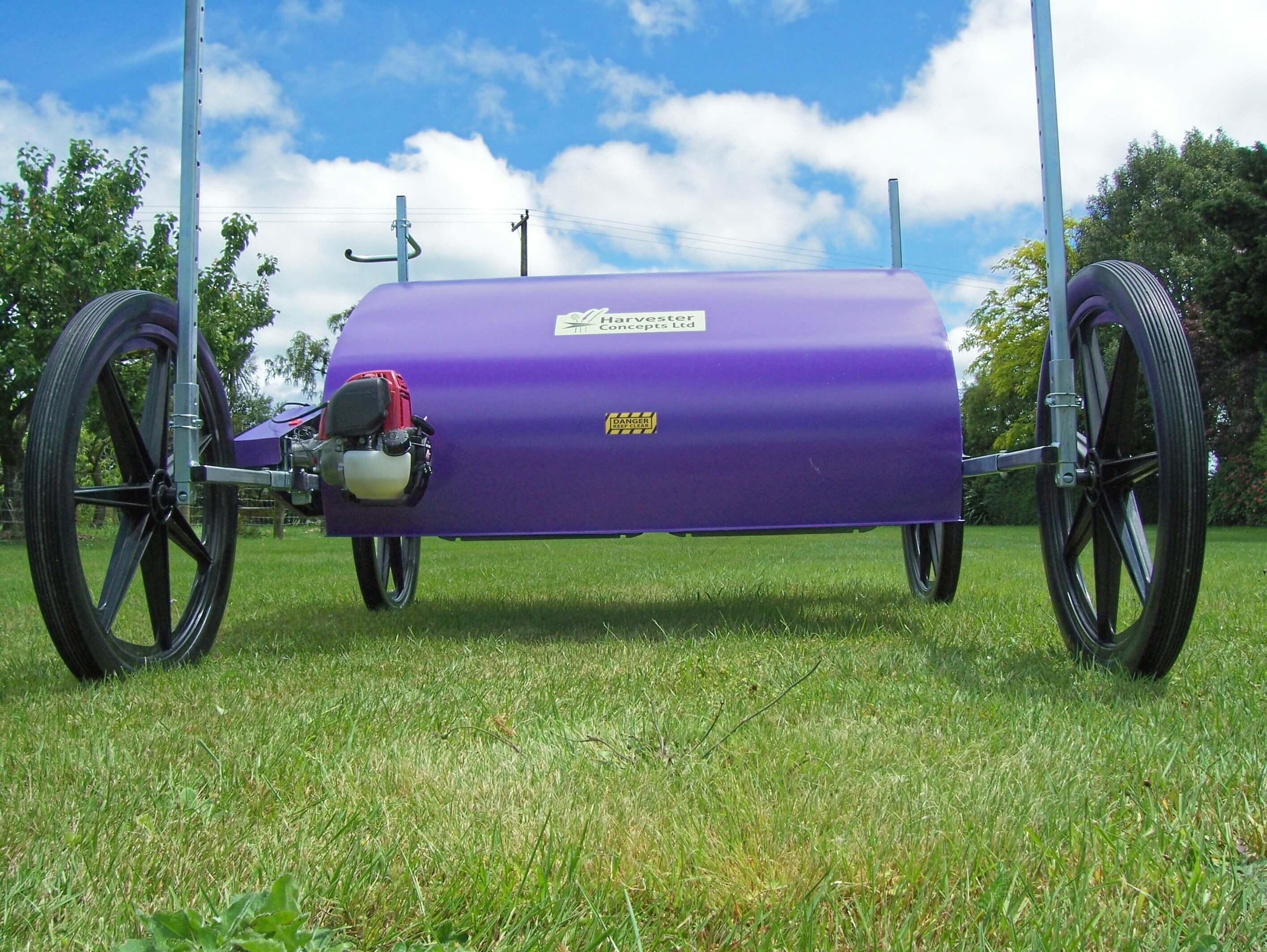

Bin Model
4 Stroke Engine
Harvesting – Width – 1200mm, Height 240 to 940mm
Overall size – 2120 to 2600mm long (with fingers & lift handle) -1505mm Wide-1155mm High to top of wheel leg
Weight – 80 Kg

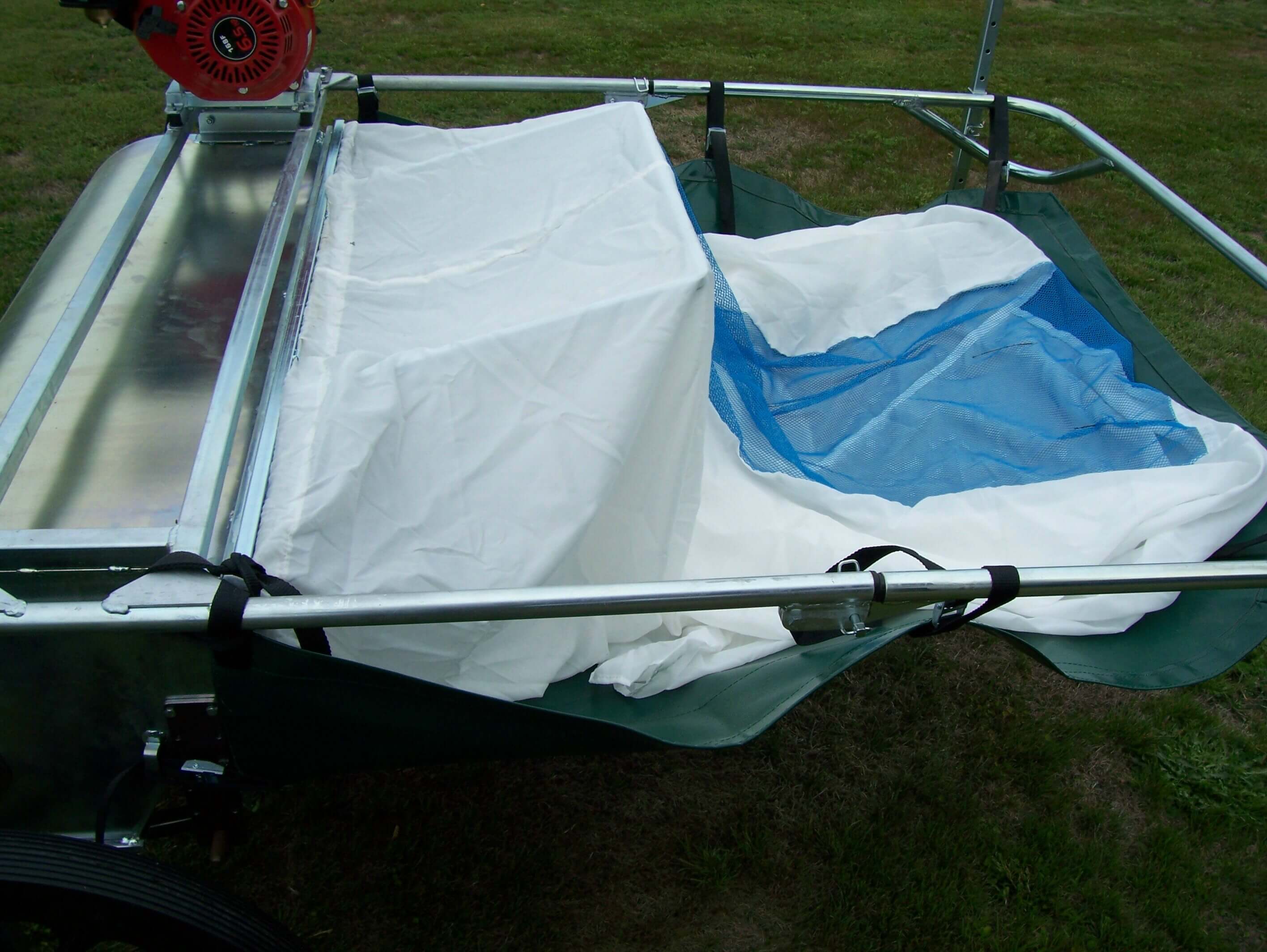

The base price is for the HT – LP (v2-Sling) model.
| Options (all prices excl. GST, ex. factory): | Price |
|---|---|
| HT-LP-Bin | NZ$6692.00 |
| Recrate collection bins in 45 or 75 sizes (download PDF of recrate sizes) | NZ$60.00 |
Parts lists are available in PDF format. Please contact us by using the form below and we’ll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.
When placing a parts order, please quote the parts list drawing title, item number required and quantities.
Salad Tray Harvester
- Base price: NZ$ 0.00
(all prices excl. GST) - Availability:
ex. factory - Delivery:
Experimental harvester
- Description
- Documents

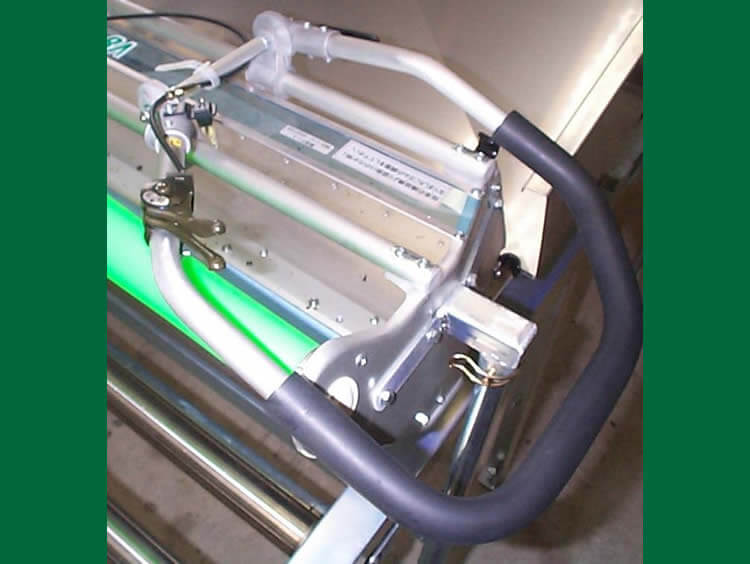

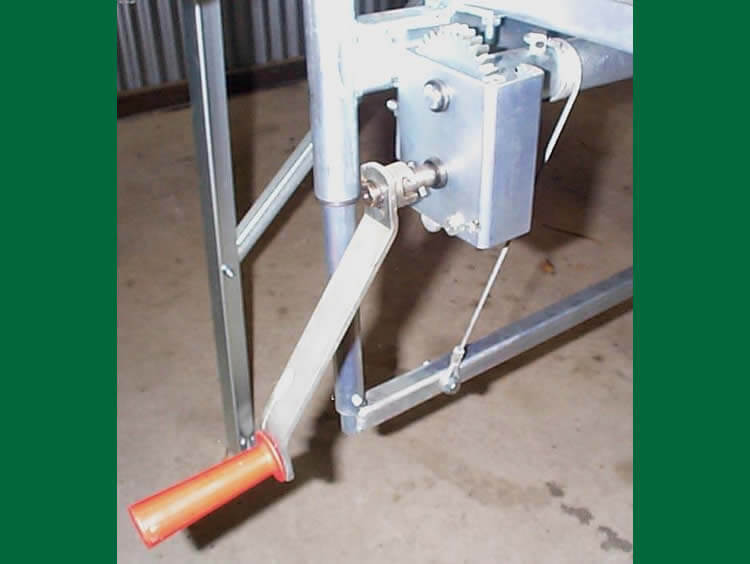

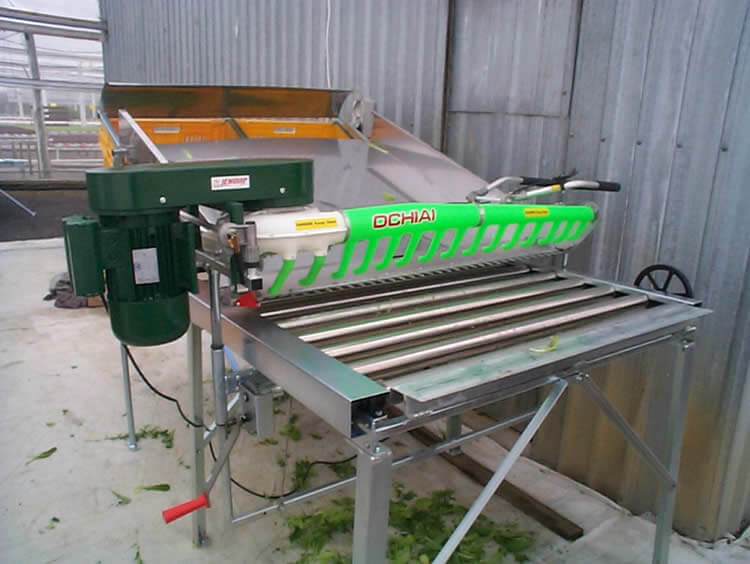

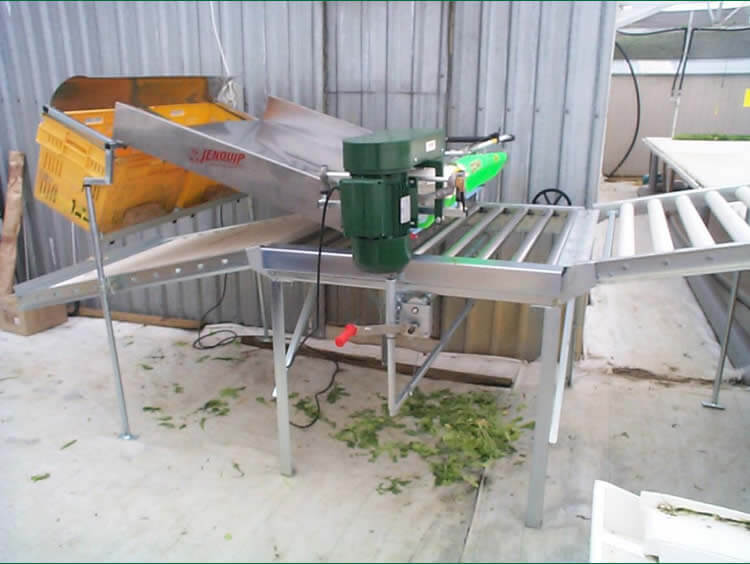

The Salad Tray Harvester is used where the operator brings plant trays to the harvester. The power head cuts and blows the cuttings up a chute and into bins. A conveyor moves the product trays under and past the cutter head which is fully height adjustable.
Typical crops they harvest include loose leaf salad plants and low growing herbs such as Thyme, Rocket, Arugula, Baby Spinach, Baby Greens, Cress, Endive, Mache, Mizuna, Mesculin, Romaine, Spinach, Tatsoi, Baby Beet, Mache, Micro Greens and others. The Salad tray cutter can also be used for topping seedlings and taking cuttings for propogation.
The Salad Tray Harvester is custom made to suit the customer’s requirements. Petrol engines or electric motors can be used and either manual or powered conveyors. Available in a range of cutting widths.
You can download the following documents:
HT-Straddle Trimmer
- Base price: NZ$ 8630.00
(all prices excl. GST) - Availability:
ex. factory - Delivery:
Experimental harvester
- Description
- Features
- Specification
- Options
- Maintenance and Servicing
- Documents

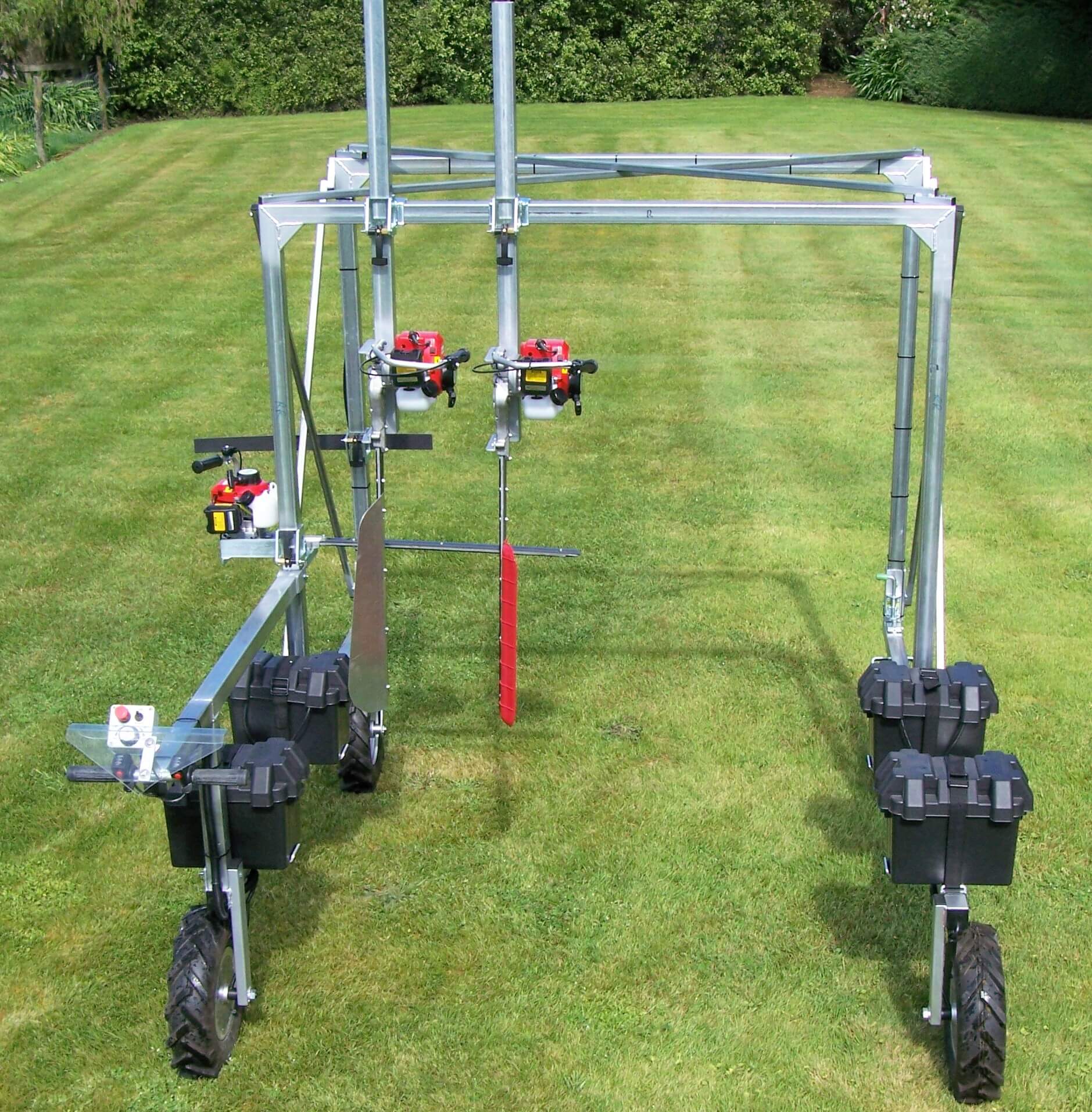

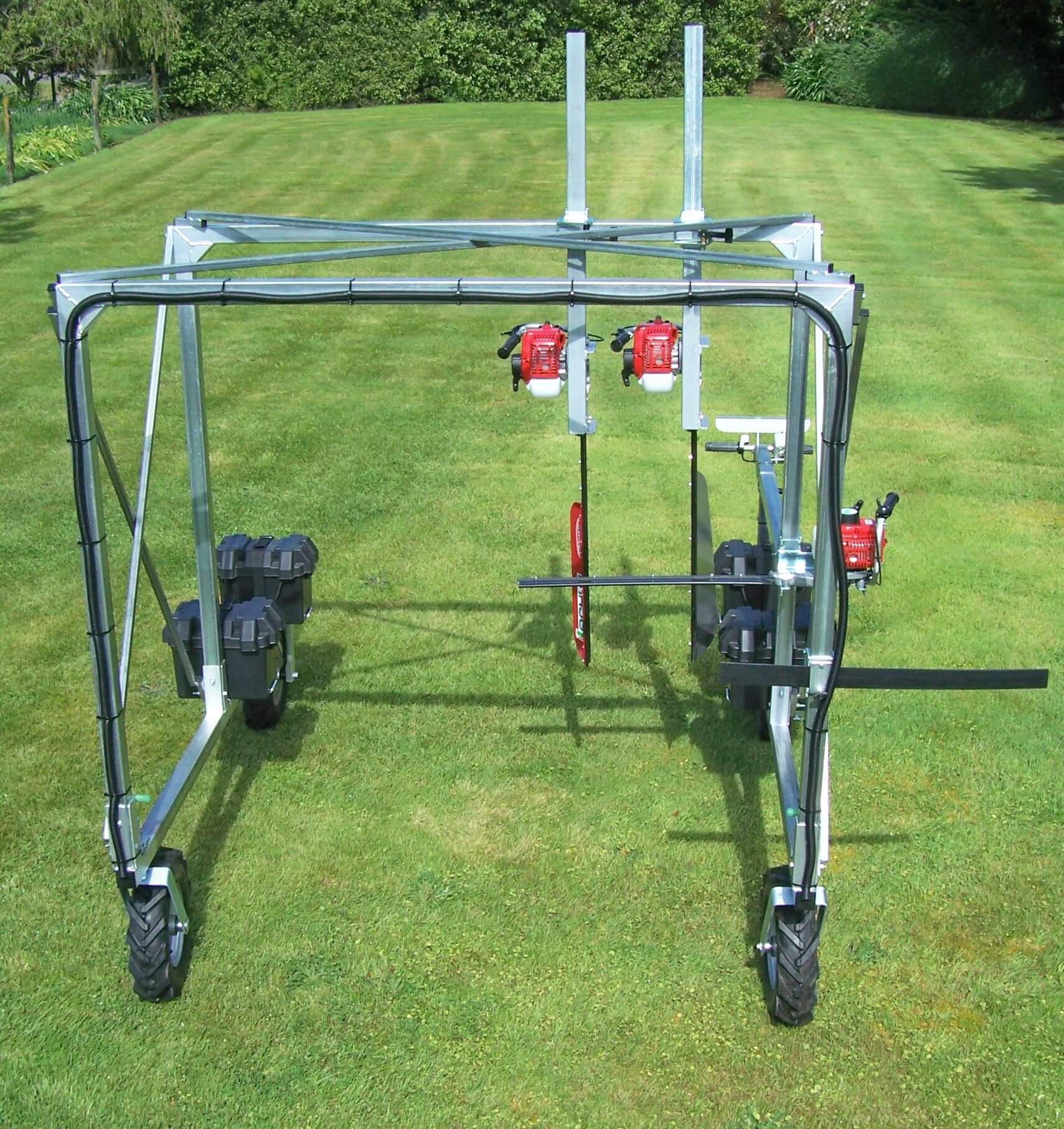

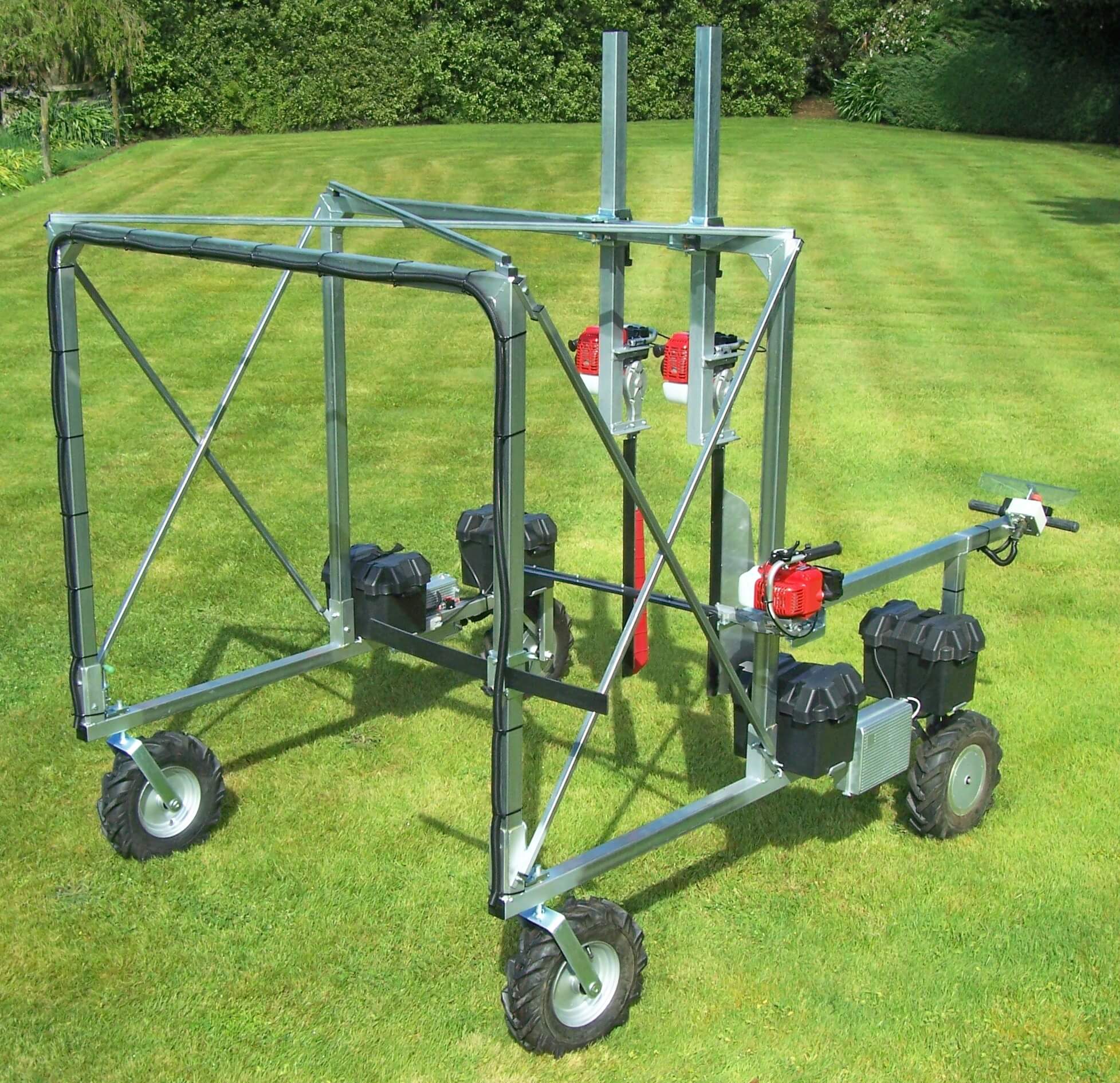

The HT–Straddle Trimmer (HT-ST) has been designed for trimming bushes, vines or hedges to shape. The HT-ST comes with the option of fitting collection bags to gather cuttings for planting out.
The HT-ST power heads can also be removed and spray apparatus can be attached making this a handy piece of equipment to keep your bushes, vines and hedges healthy.
- Adjustable height
- Adjustable cutting heads allowing various cutting positions.
- Castoring Wheels for ease of movability.
- Self-propelled system.
- One person Operation.
- Frame is fully Zinc Plated for low maintenance.
24V DC Self Propelled system, 2 Wheel Motors
Two castoring wheels at front.
3 x Power heads (Hedge trimmers)
Sight/aiming system.
| Options (all prices excl. GST, ex. factory): | Price |
|---|---|
| 4x Auxiliary Batteries (rechargeable) | TBA |
| 900mm Powerheads | TBA |
| Spray Equipment | TBA |
| Recrate collection bins in 45 or 75 sizes (download PDF of recrate sizes) | NZ$60.00 |
| Holder for different bin sizes | Please enquire |
The Cutter bar should be lubricated with food grade lubricant whenever refuelling and before storing. (Use Ochiai original grease, this can be ordered by using the form below.)
Silicon lubricants can be applied to hinge points, sliding areas etcetera. A drop of oil should be applied to the throttle cable at each end before storage.
Annually check cutter bar bolts for wear and replace nuts, bolts and washers as required. Sharpen the cutter bar if required. (Rarely required)
Parts lists are available in PDF format. Please contact us by using the form below and we’ll email you the PDF. If you are not sure which model you have, please state this when enquiring about parts and we will confirm from our records.
When placing a parts order, please quote the parts list drawing title, item number required and quantities
You can download the following documents:
Nut Harvester
- Base price: NZ$ 11875.00
(all prices excl. GST) - Availability:
ex. factory - Delivery:
Experimental harvester
- Description
- Features
- Specification
- Options
- Videos

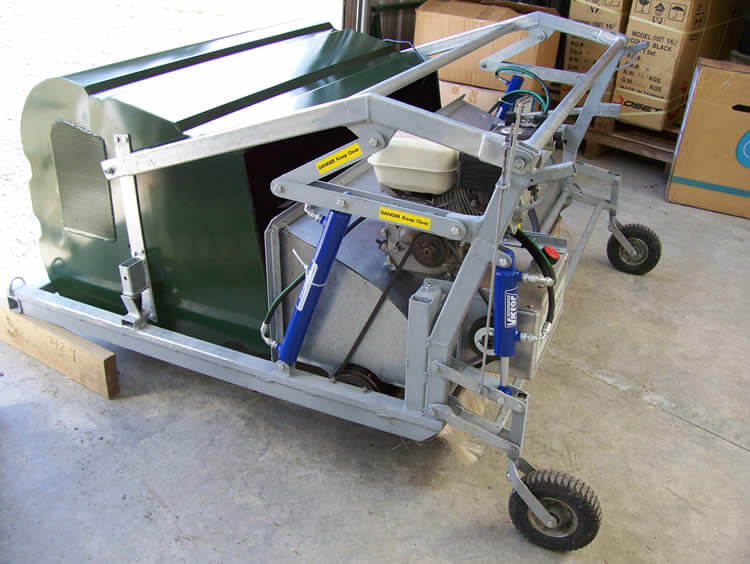

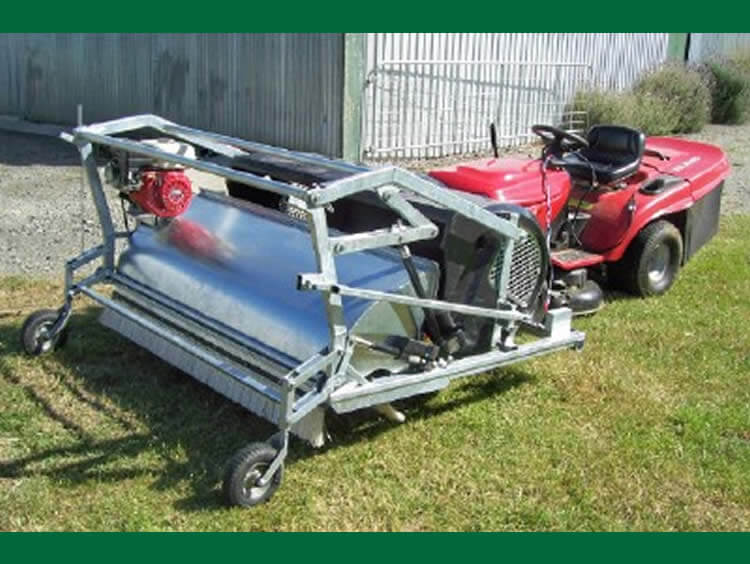

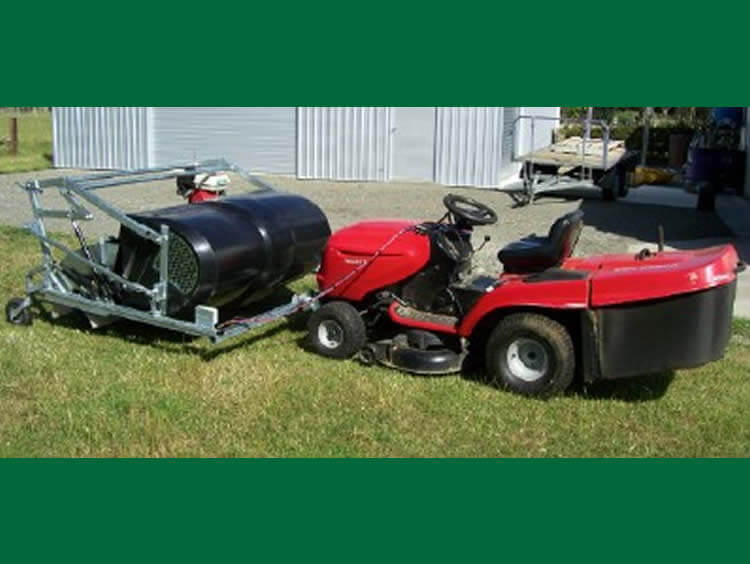

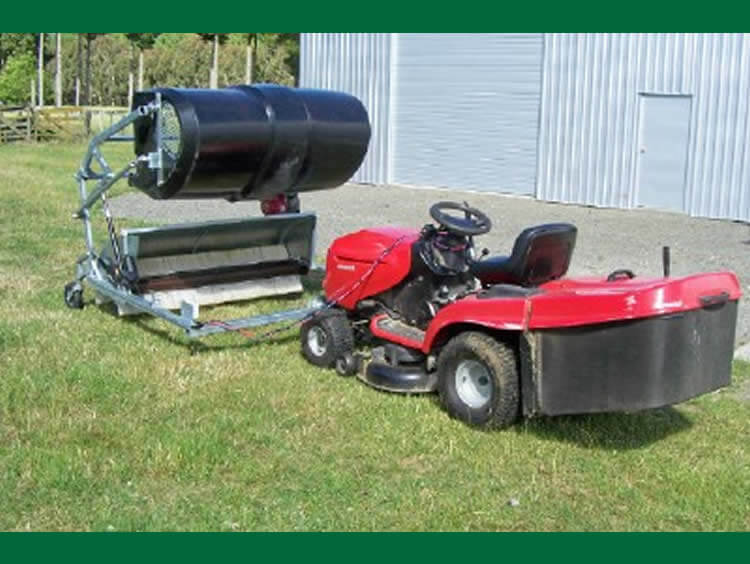

Fits to the front of larger ride-on mowers, ATVs, quadbikes or small tractors. Versatile for collecting a range of nuts, including chestnuts, hazelnuts and walnuts. The operating principle is very important — the harvester must be out in front so that the nuts are collected before they can be run over.

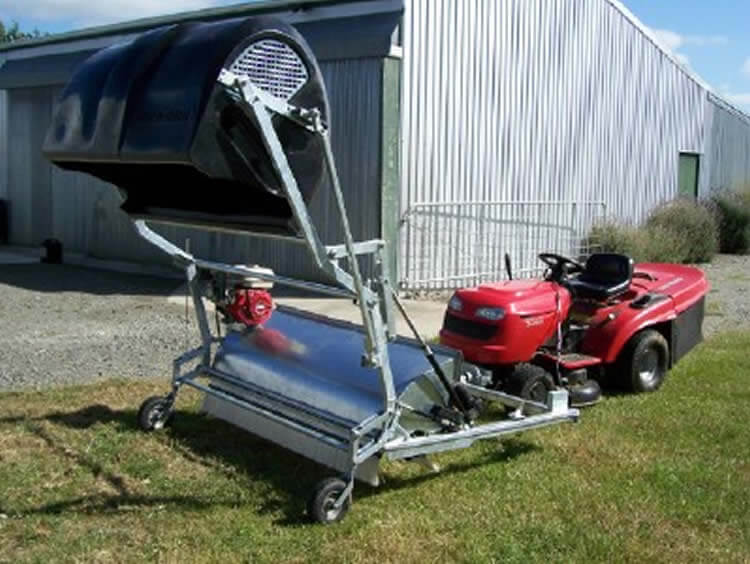

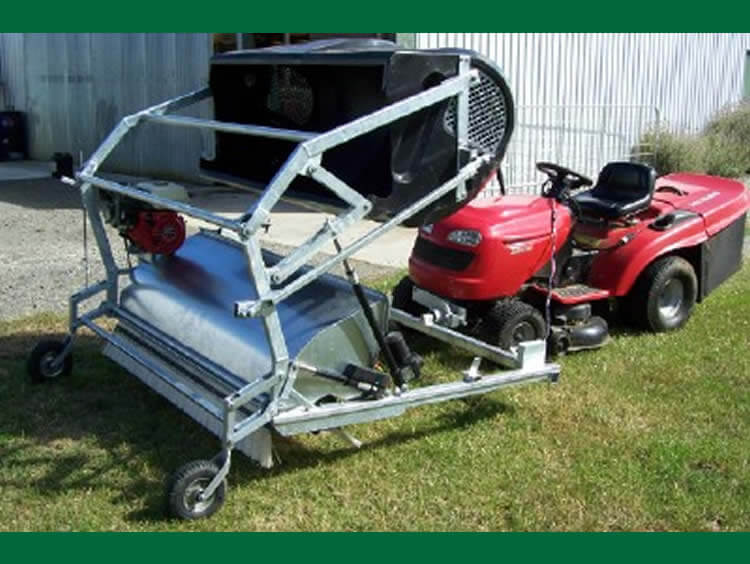

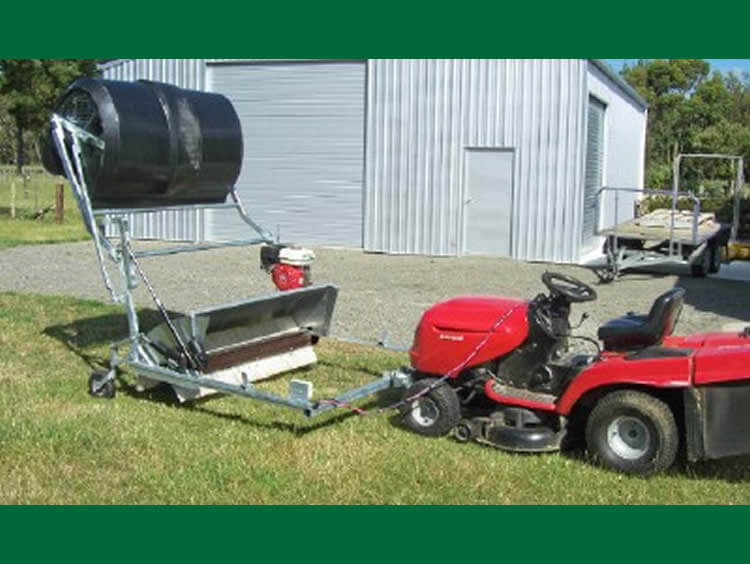

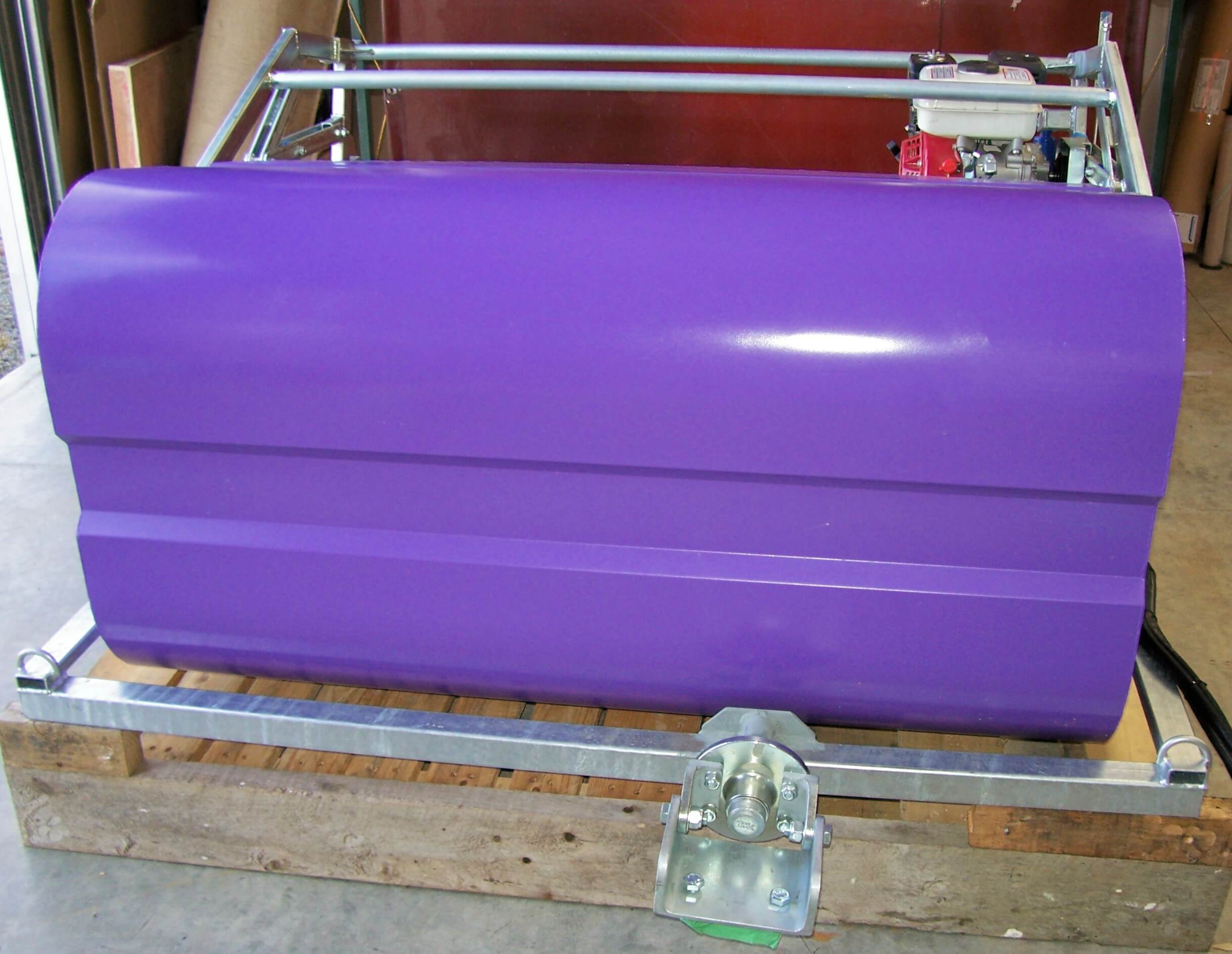

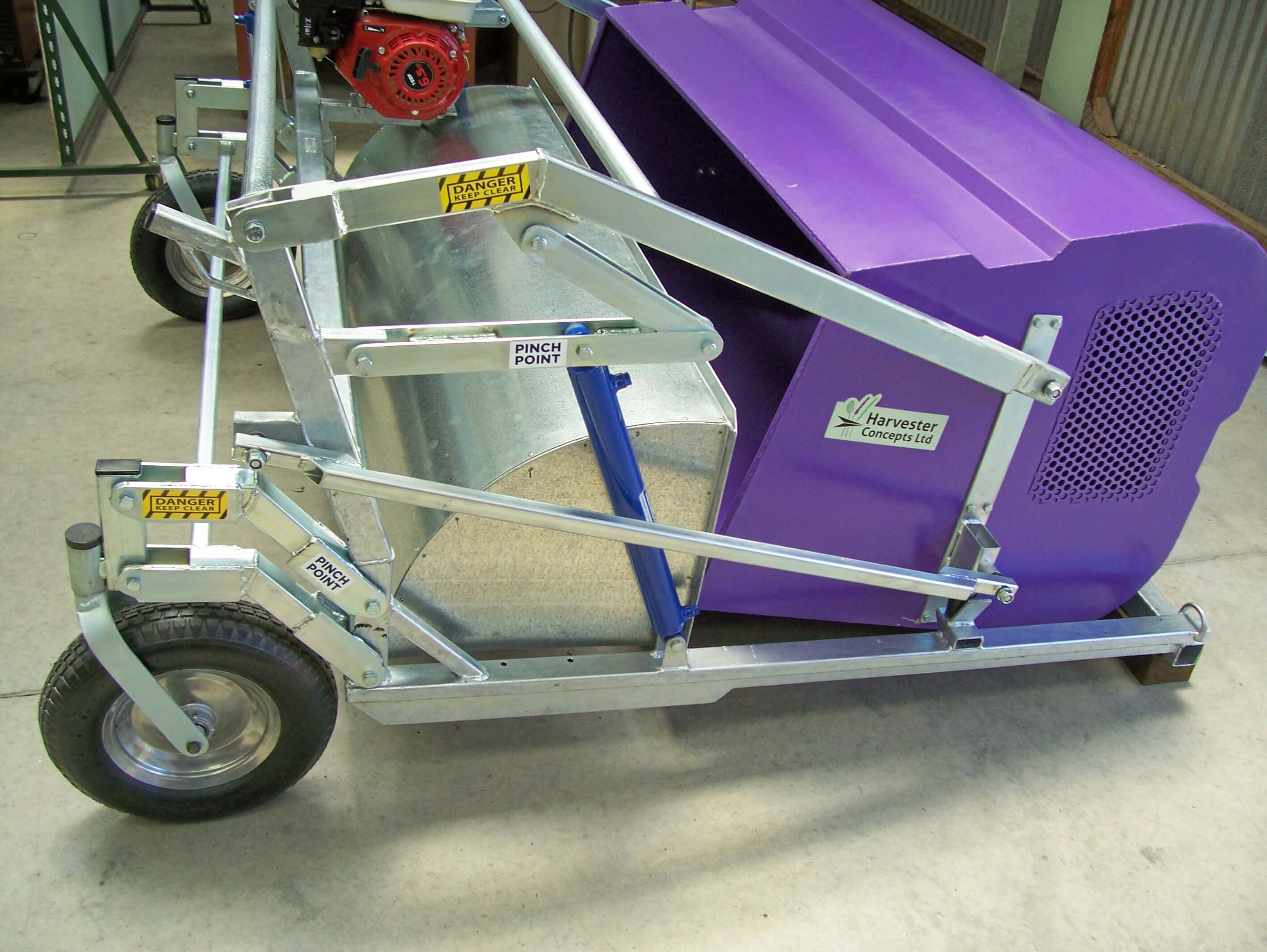

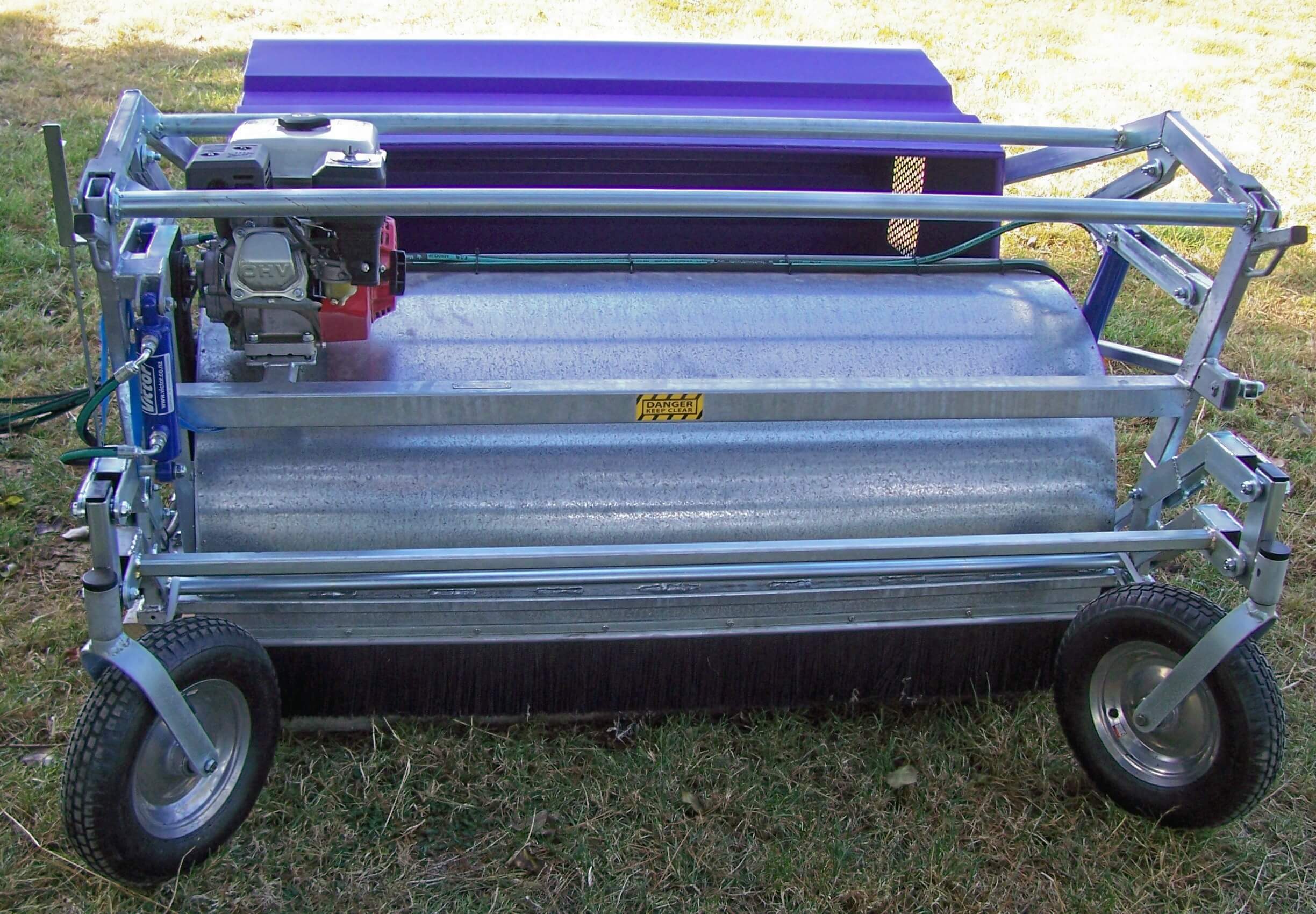

Latest model has hydraulic power for raise/lower or bin tipping — see main picture above. The nut harvester can be supplied with its own power pack or for use with a tractor hydraulic supply (only small supply required). With the increased bin capacity of the latest model, the smaller mower shown in the pictures is no longer large enough — bigger prime movers are required.
If you have an queries about the ability of your equipment to handle the Nut Harvester, please contact us for advice.
- Broom sweeps up both large and small nuts — no adjustments required.
- Large collection bin can lift high and unload into potato boxes or similar.
- Self-contained, with separate engine powering the broom and hydraulic system.
- Hydraulic operation ensures quick, effortless broom height adjustment and unloading of the bin (12vDC power required from vehicle).
- If mounted on a mower, then collecting and mowing can be done at the same time
- Broom width (collecting width): 1470 mm
- Bin capacity: up to 588 litres
- Unload height: above 1000 mm
- Engine: 6.5HP 4 stroke running at low speed
Dimensions:
| Width (mm) | Length (mm) | Height (mm) | cu.m (approx.) | kg (approx.) | |
|---|---|---|---|---|---|
| Ready to Use | – | 1700 | 1770 | – | – |
| For Freighting (on pallet) | – | – | – | – | 200kg |
Note: Specifications are subject to change without notice. Harvester Solutions implements a continuous product improvement program.
| With Valving | $13240.00 |
| With Power Pack | $14820.00 |
